You grab the shaft and wiggle it. There's movement. Now what?
Shaft play is one of the most misunderstood aspects of turbocharger diagnosis. Some movement is completely normal. Too much means you're looking at bearing failure. Keep driving and that failure will take other components with it.
Here's what you need to know.
What Is Shaft Play?

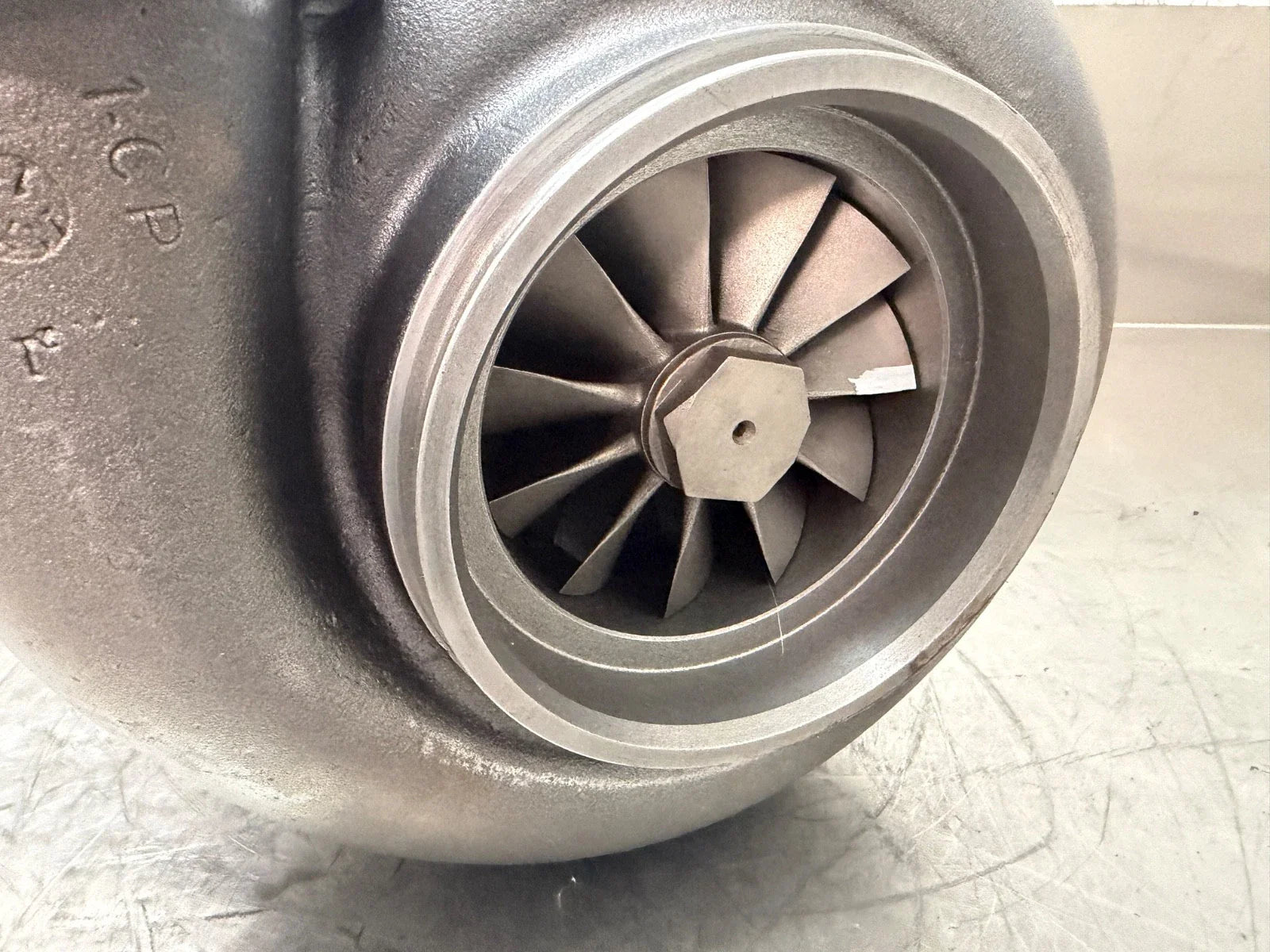

The turbo shaft connects the turbine wheel on the exhaust side to the compressor wheel on the intake side. It spins on a set of bearings (either journal bearings or ball bearings depending on the unit) inside the center housing.
Because those bearings are designed with a small oil film gap, there will always be a small amount of play. That's by design.
The issue is when that play exceeds normal tolerances. Once it does, the wheels start making contact with the housings. At 100,000+ RPM, even minor contact causes rapid, cascading damage.
Radial vs. Axial Play
These are two different measurements and they mean different things.
Radial play is the side-to-side movement of the shaft. A small amount (typically 0.003 to 0.006 inches on most journal bearing turbos) is acceptable. If you can feel the shaft rocking noticeably by hand, or if the compressor wheel shows rub marks on the housing, radial play is already excessive.
Axial play is the in-and-out movement of the shaft along its length. This is controlled by thrust bearings. Normal axial play is typically 0.001 to 0.003 inches. If you can push and pull the shaft and feel it moving freely front to back, the thrust bearing is worn.
Worn thrust bearings are one of the leading causes of oil seal failure. When the shaft migrates axially, it breaks the sealing contact, and oil starts passing into the intake or exhaust.
What Causes Excessive Shaft Play?
Oil quality is almost always the root cause. Turbos depend on a constant supply of clean oil to maintain the film layer that keeps the shaft centered. Contaminated oil, delayed oil changes, or low oil pressure will wear those bearings faster than anything else.
Heat soak is the second major factor. Shutting off a hot engine without a cooldown period traps heat in the center housing. That heat degrades the oil film and, over time, scores the bearing surfaces.
Foreign object ingestion (a failed air filter, a cracked intake boot) can also damage the compressor wheel and throw the shaft out of balance, accelerating bearing wear unevenly.
When to Get It Checked
If you hear a high-pitched whine or a metallic scraping noise under boost, do not wait. Those sounds often mean the wheels are already making contact.
If you've had an oil-related issue (a pressure drop, extended change interval, contamination from a blown engine), inspect the turbo before assuming it survived.
If you're buying a used vehicle with a turbo and don't know the service history, a pre-purchase inspection is cheap insurance.
Caught early, excessive shaft play is usually a rebuild. Left alone, it becomes a replacement, and potentially an engine.
