880547-5024S

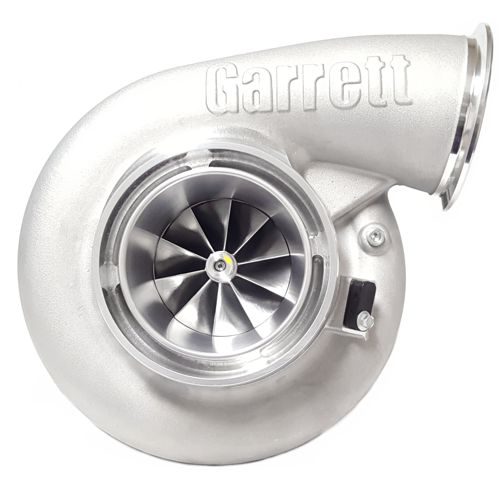

Garrett G-Series G47-1650 (80MM/109) Turbocharger

Regular price$3,979.95
/
Shipping calculated at checkout.
  • Free standard shipping for purchases over $250 within USA
Options
Product Description
      Garrett G47-1650-80MM/109 SUPERCORE ONLY - P/N: 880547-5024S w/ Compressor Housing w/ V-Band Outlet


      Garrett G47 turbochargers are engineered for extreme horsepower applications. A new high-flowing inconel turbine wheel and a one-piece aluminum center housing are the two major features that differentiate the G47 from its predecessor.


Turbine Stage:
      The newly engineered turbine wheel with optimized G Series aerodynamics increases flow up to 20% more (Compared to GTX Gen II, see graph below). G47 is offered with four stainless steel T6 open turbine housings in .96 A/R, 1.08 A/R, 1.23 A/R and 1.40 A/R.


      Outlet length on T6 turbine hsg reduced 17mm compared to GTX to optimize weight reduction


Spool:
      Up to +9% (estimated by flow, efficiency, and inertia)


Center Housing:
      One-piece aluminum center housing reduces supercore weight. The center housing is air Cooled and retains the oil inlet and outlet specifications from previous GTX designs.


Compressor Stage:
    Garrett G47 compressor stages are offered in 76mm | 80mm comp inducer | 109mm comp exducer along with 80mm | 88mm comp inducer | 120 comp exducer, with their own horsepower ratings indicated in the model name.

Features:
  • Supports nearly 1850 horsepower with amazing boost response depending on your inducer wheel choice
  • 76mm | 80mm comp inducer | 109mm comp exducer along with 80mm | 88mm comp inducer | 120 comp exducer
  • Spool: up to +9% (estimated by flow, efficiency, and inertia)
  • 20% more turbine flow (compared to GTX) see graph below
  • One-piece aluminum center housing
  • Outline interchangeable with GTX Gen II turbos
