908829-0003

Garrett GVW-50 External Wastegate Kit 45mm

Regular price$555.99
/
Shipping calculated at checkout.
  • Free standard shipping for purchases over $250 within USA
Color

Features:

  • CFD tested for maximum flow and thermal efficiency
  • Optimized actuation stability and temperature resistance for superior durability
  • Replaceable valve and bushing components to increase service life
  • Robust design for easy diaphragm replacement
  • Liquid-cooled actuator ports for use on severe applications (up to 52% reduction in body temp)
  • Anodized aluminum actuator cover
  • Four Colors: Red | Blue | Black | Silver
  • Three Sizes: 40mm | 45mm | 50mm
  • Springs | Fittings | Flanges | V-bands included
  • Standard Base Pressure: 1 Bar | 14.5 PSI
  • Maximum Base Pressure:
    GVW50: 23 PSI | 1.6 Bar
  • Minimum Base Pressure: 3 PSI | 0.2 Bar

Material Data:

The valve housing is cast from high temp stainless steel and rated for exhaust temperatures up to 1050° C. CFD optimized for maximum flow and thermal efficiency.

  • Valve Housing: High temp stainless steel rated up to 1050° C
  • Diaphragm: High temp Nomex reinforced elastomer
  • Actuator Cover: Fully-machined anodized 6061 aluminum
  • Valve Guide | Bushing: Nitronic 60
  • Valve: high temp stainless steel with plated stem
  • V-Band: CNC machined 304 stainless steel
  • Flanges: Fully-machined 304 stainless steel
  • Springs: 17/7 PH stainless steel

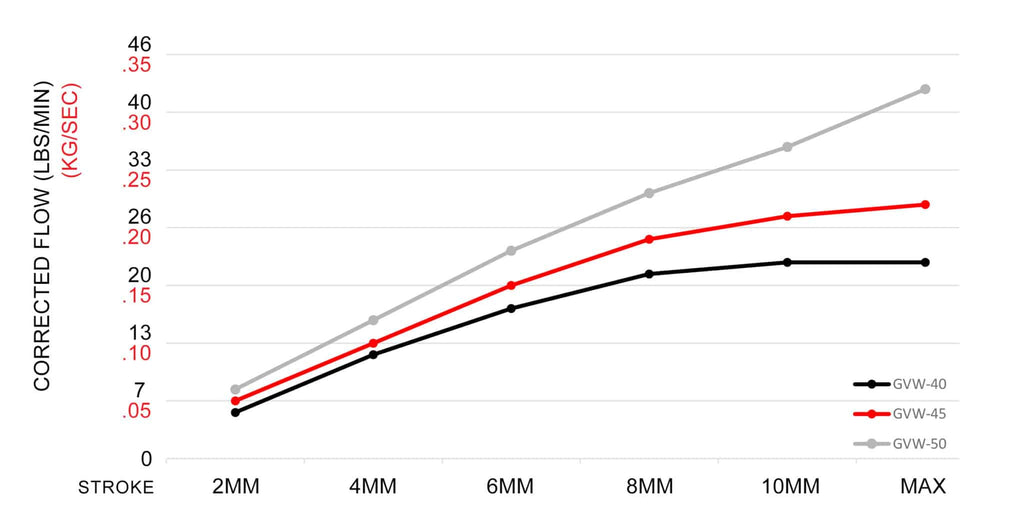

Mechanical Data:

Garrett Vent | External Wastegates are created by the engineers that designed G-Series and GTX Gen II turbochargers. Available in three sizes: 40mm | 45mm | 50mm

  • Valve Diameter: 40mm | 45mm | 50mm
  • Valve Mass: (40mm)1.27kg | 45oz (45mm) 1.47kg | 52oz (50mm) 1.56kg | 55oz
  • Max Spring Base Pressure: 1.7 bar | 25 psi (1:1 backpressure ratio)
  • Minimum Spring Base Pressure: 0.2 bar | 3 psi (1:1 backpressure ratio)
  • Port Fitting | Air: M10x1.0 to hose barb (hose ID 6mm | .25in)
  • Port Fitting | Water: M8x1.0 to AN-3

Thermal Data:

When researching and testing common shortfalls of wastegates, we observed how heat cycling and normal wear can rapidly change their actuation characteristics. Garrett engineers created GVW as a high flowing product with low degradation in performance over its lifespan. Actuation data (opening and closing) in the chart was measured before and after extreme testing conditions. Results show the heat cycled GVW product maintains linear control of the wastegate as compared to the new product. Precise actuation of the GVW provides accurate calibration settings and performance throughout the lifespan of the product. Accurate wastegates, allow for optimum performance of the turbocharger.

  • Max Thermal Stress (non-cooled): 270°C actuator body temp during thermal cycle test
  • Max Thermal Stress (liquid-cooled): 130°C actuator body temp during thermal cycle test
  • Max Exhaust Temp | Peak: Up to 1050°C

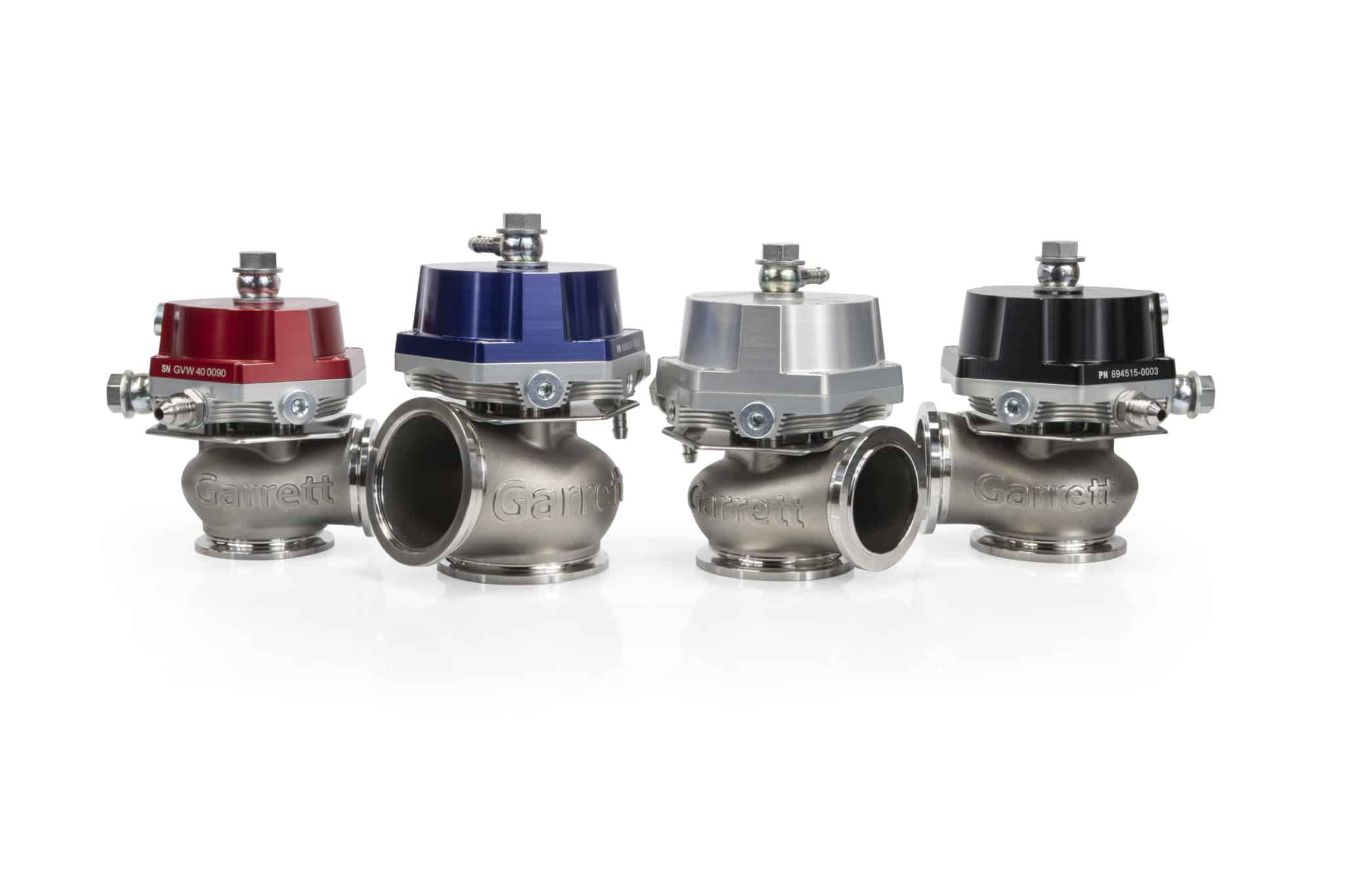

4 Color and Size Options:

GVW Wastegates are available in four colors and three sizes

  • Sizes: 40mm | 45mm | 50mm
  • Colors: Red | Black | Blue | Silver

Kit Contents:

GVW Wastegates include all the following parts:

  • Springs
  • V-Band: Inlet | Outlet
  • Outlet Flange
  • Inlet Flange
  • Valve Seat
  • Washers: M8 | M10
  • Water Fittings
  • Banjo Bolt and Banjo Fittings
  • Air Plugs

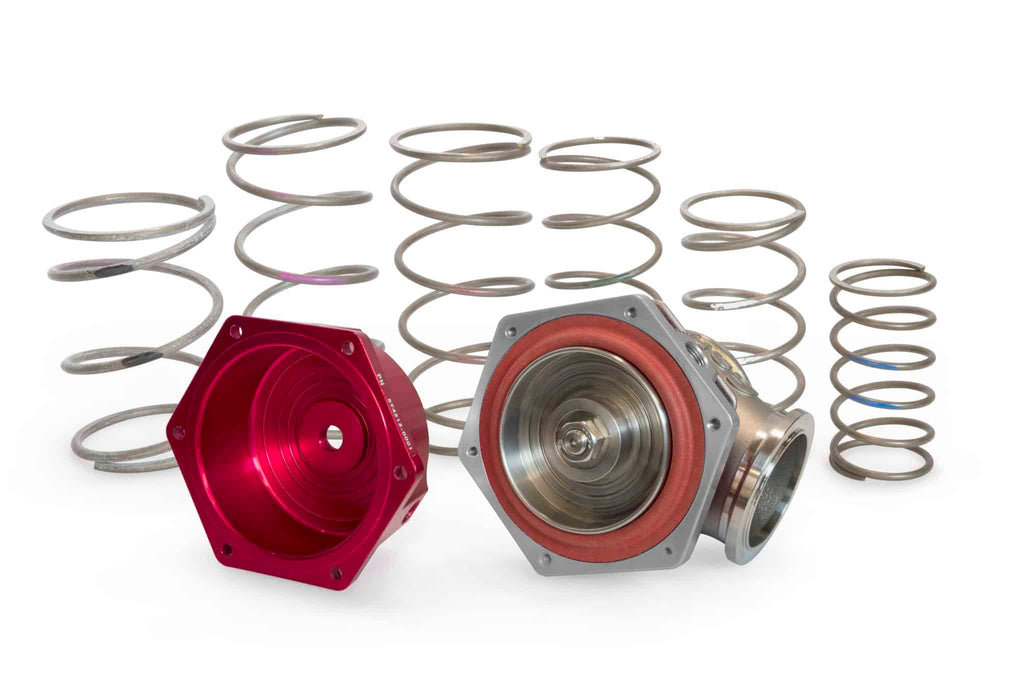

Wastegate Springs:

GVW wastegates are set to 1 Bar | 14.5 PSI of base pressure and can be configured from 0.2 Bar | 2.9 PSI – 1.7 Bar | 24.7 PSI (considering 1:1 backpressure).

Use the chart to reference wastegate size and spring color to identify Garrett GVW wastegate spring pressures

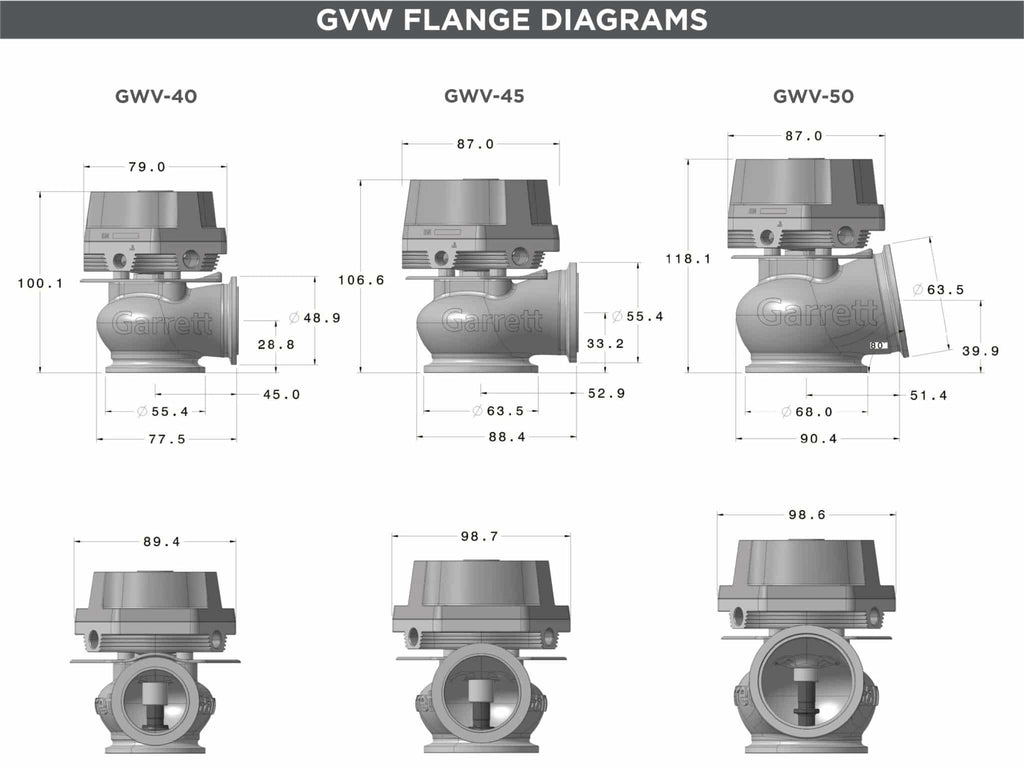

Wastegate Flange Specs:

  • GVW-50: Inlet OD 68.0mm | 2.68in Outlet OD 63.5mm | 2.50in  (Interchangeable with Turbosmart Gen V ProGate 50)
