Garrett Club Line GBC17-250 36mm Turbocharger

$875.98

Shipping calculated at checkout.

Entry No change Convert T25 Entry To V-band (Tial Hsg Compatible) +$100

Actuator 1 Bar 1.5 Bar No change (.5 Bar)

Club Line is a product engineered for small engine displacements. This includes powersports, personal watercraft, and automobiles. These turbochargers feature internally wastegated turbine housings and journal bearing rotating groups. GBC stands for GARRETT BOOST | CLUB LINE. The first two numbers indicate the turbo frame size. The larger the number the larger the turbine wheel. The numbers following the dash indicate the peak potential flywheel horsepower rating. GBC17-250

36mm compressor inducer | 49mm compressor exducer

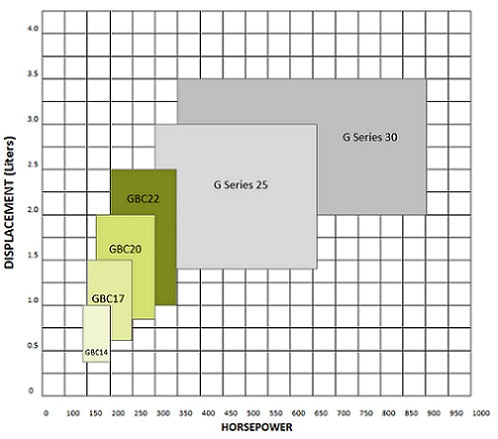

17, 20 and 22 outline interchangeable
150 –250 horsepower capability
Internal wastegate assembly with calibrated actuator
Billet compressor wheel with extended tip design for higher pressure ratio capability
GTX Gen II compressor aero with modern gasoline turbine wheel aero
Journal bearing rotating group
Engineered for small displacement engines including powersports, personal watercraft and automobiles

Read About Turbo System Optimization: A guide to setting up your turbocharger

The maximum power stated for each turbocharger has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. Please consult with your local distributor before making a purchase.
