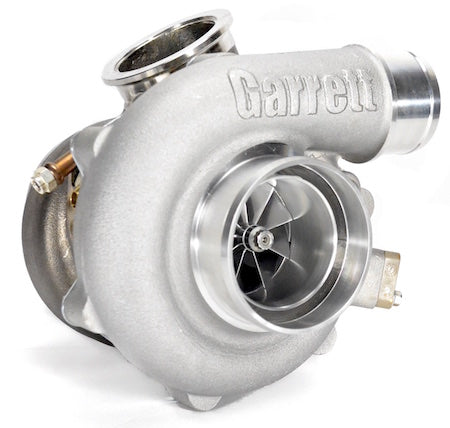

Garrett G Series G25-660 Standard Rotation Turbocharger

$2,567.82

Shipping calculated at checkout.

Options V-Band Turbine Hsg .72 A/R V-Band Turbine Hsg .92 A/R T25 Turbine Hsg .49 A/R Internally Wastegated V-band Turbine Hsg .72 A/R Internally Wastegated V-band Turbine Hsg .92 A/R Internally Wastegated V-Band Turbine Hsg T3 .92 A/R Supercore - NO Turbine Hsg

The G-Series G30-660 turbocharger is compatible with 1.4L – 3.0L engine displacements and capable of producing up to 660 horsepower. G Series 30 turbochargers are highly efficient and will outflow all comparable products on the market.

GARRETT G SERIES FEATURES

Ultra High Flow G-Series Turbine Wheel
Advanced aerodynamics G Series Compressor Wheel
Fully machined speed sensor and pressure ports
Oil restrictor and water fittings included with purchase
One piece center housing and backplate for increased durability
Compact Standard Package
Four water jacket ports for customizable installation
Ball Bearing CHRA Rotating Assembly
Standard & Reverse rotation (spins counterclockwise) options available
Mar-M turbine wheel material rated up to 1050° C | 1922° F
Stainless steel turbine housings for temperatures up to 1050° C | 1922° F
+20% More Horsepower & Quicker Spool over comparable competitive turbochargers.

GARRETT G SERIES TURBINE WHEEL

Featuring the latest advanced ultra high flow aerodynamic designs with the Garrett G Series Turbine Wheel, the G Series models offer previously unobtainable improvements in spool and power levels by frame size. The G-Series Turbine wheel is constructed of Mar-M super alloy material. This material is designed to withstand up to 1050° C - that’s 200 degrees more than inconel turbine wheels! The newly engineered turbine wheel with optimized G Series aerodynamics increases flow up to 15% (Compared to GTX Gen II) more than the GTX and has a peak efficiency of 74%.

DUAL BALL BEARING CHRA - STANDARD AND REVERSE ROTATION

All G-Series utilize a V-Band turbine housing to CHRA connection. This improves the ease of installation, clocking, and servicing the turbocharger. Each turbocharger includes a -4AN oil restrictor fitting with a 1MM restriction orifice to provide the turbo with the recommended 40PSI of oil pressure. Four large water jacket ports increase cooling capacity and allow enthusiasts to customize water line routing to help improve the installation process. The turbocharger comes with two -6AN fittings and two plugs.

Recommended to install waterlines on opposite sides of housing.

GARRETT G SERIES COMPRESSOR SPECIFICATIONS
