Product Description:
Product Features:

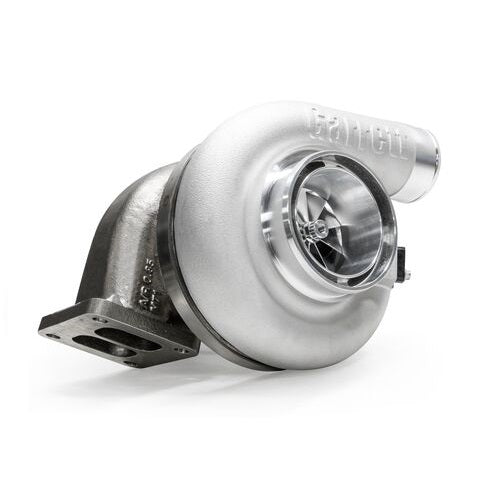

Garrett G-Series G40-1150 (71MM) Turbocharger
$3,315.73
Shipping calculated at checkout.
Pickup currently not available
- Garrett G-Series G40-1150 (71mm Comp Wheel) Turbocharger Unit w/ T4 Divided .85 A/R Turbine Housing
Product Features:
- Quick spooling, high horsepower solution for 2.0 liter up to 6.0 liter engine platforms

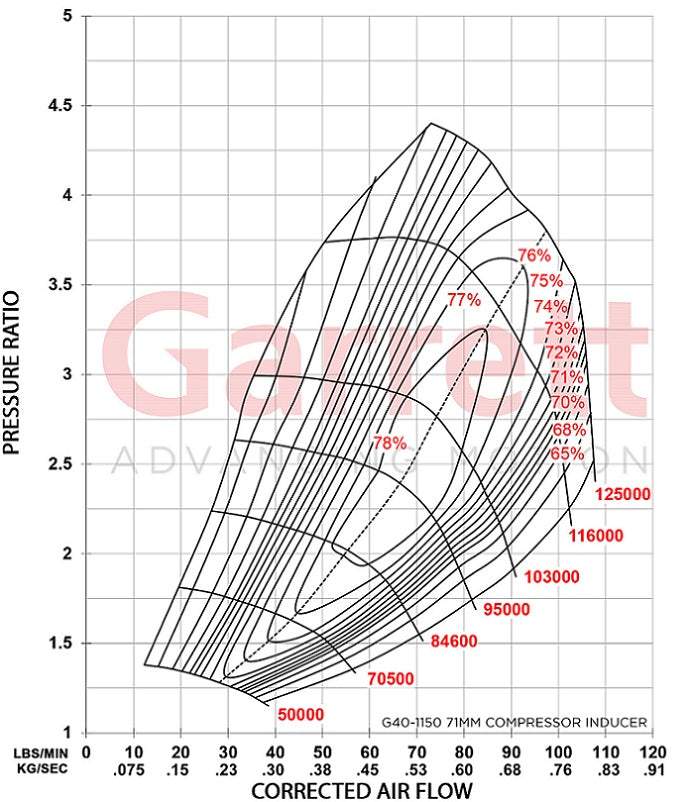

- G Series compressor aero increases flow up to 35% (compared to GTX4088R)
- Dual ceramic ball bearing with steel cages

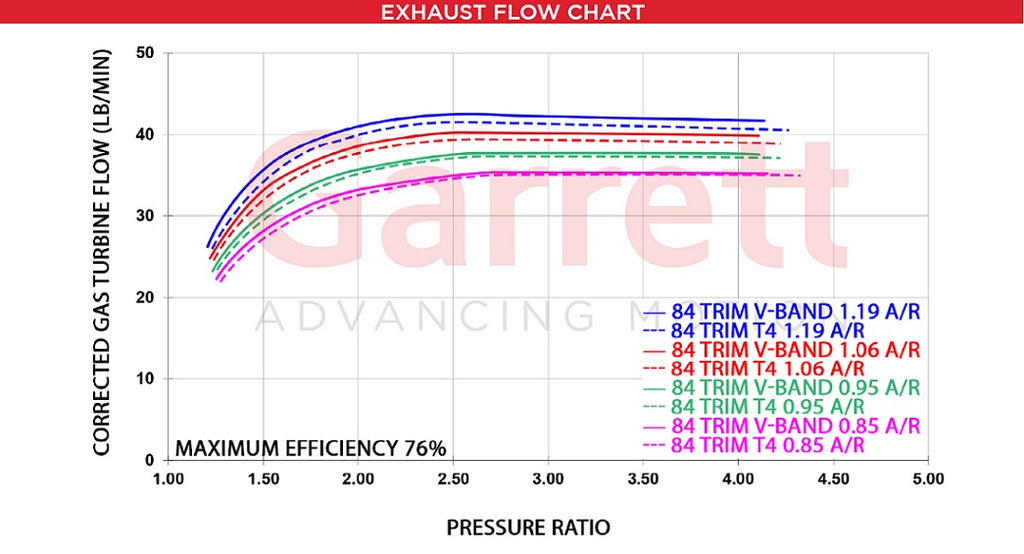

- G Series turbine aero increases flow 16% (compared to GTX4088R)
- Inconel turbine wheel with 77mm inducer flows up to 43 lbs/min
- Lightweight aluminum backplate
- Fully machined speed sensor and pressure ports
- Water fittings included with super core
- Stainless steel turbine housings available with T4 twin scroll inlet
- T4 turbine housing outlet V-Band dimension (117.4mm | 4.622” OD) is equal to existing GTX42, GTX45 and G42 models
- Compressor Wheel Inducer: 71mm
- Compressor Wheel Exducer: 88mm
- Compressor Wheel Trim: 65
- Compressor Housing A/R: 0.80
- Turbine Wheel Inducer: 77mm
- Turbine Wheel Exducer: 70mm
- Turbine Wheel Trim: 84
