SKU: 880547-5028S/008561

Garrett G-Series G50-1900-88MM/120 Turbocharger

$4,888.95

Shipping calculated at checkout.

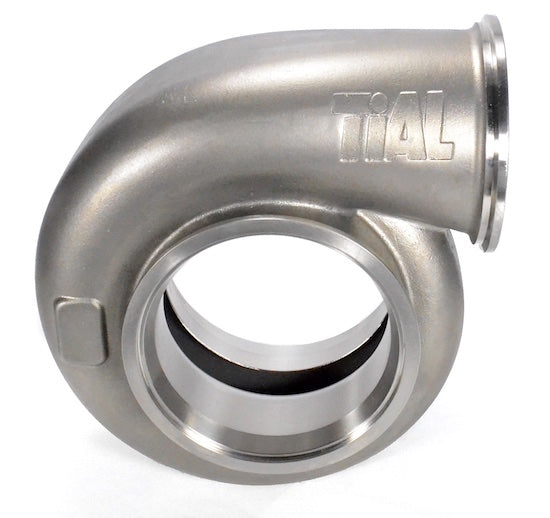

Turbine Housing TiAL 1.17 A/R V-band inlet/outlet TiAL 1.30 A/R V-band inlet/outlet TiAL 1.45 A/R V-band inlet/outlet .96 A/R T6 Open entry 5” v-band exit 1.08 A/R T6 Open entry 5” v-band exit 1.23 A/R T6 Open entry 5” v-band exit 1.39 A/R T6 Open entry 5” v-band exit None - Supercore only

Product Description

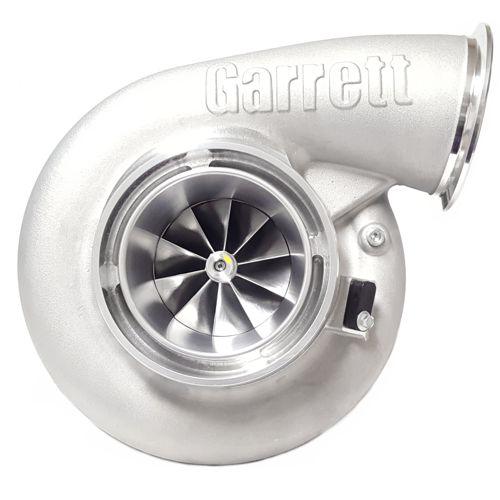

Garrett G50-1900-88MM/120 SUPERCORE ONLY - P/N: 880547-5028S w/ Compressor Housing w/ V-Band Outlet.

Garrett G50 turbochargers are engineered for extreme horsepower applications. A new high-flowing inconel turbine wheel and a one-piece aluminum center housing are the two major features that differentiate the G50 from its predecessor.

Turbine Stage:

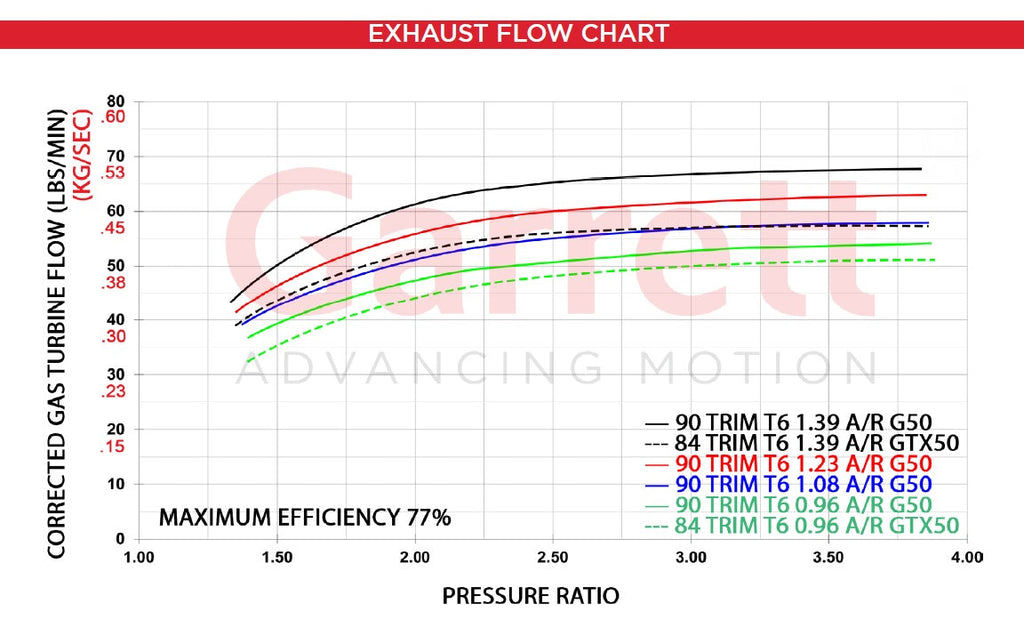

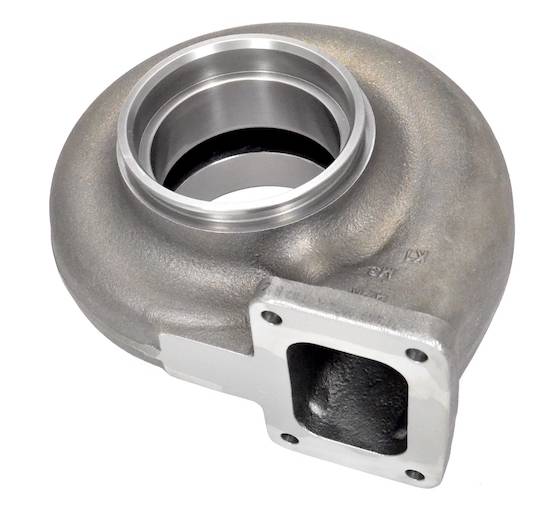

The newly engineered turbine wheel with optimized G Series aerodynamics increases flow up to 23% more (Compared to GTX Gen II, see graph below). G50 is offered with four stainless steel T6 open turbine housings in .96 A/R, 1.08 A/R, 1.23 A/R and 1.40 A/R.

Outlet length on T6 turbine hsg reduced 17mm compared to GTX to optimize weight reduction

Spool:

Up to +12% (estimated by flow, efficiency, and inertia)

Center Housing:

One-piece aluminum center housing reduces supercore weight. The center housing is air Cooled and retains the oil inlet and outlet specifications from previous GTX designs.

Compressor Stage:

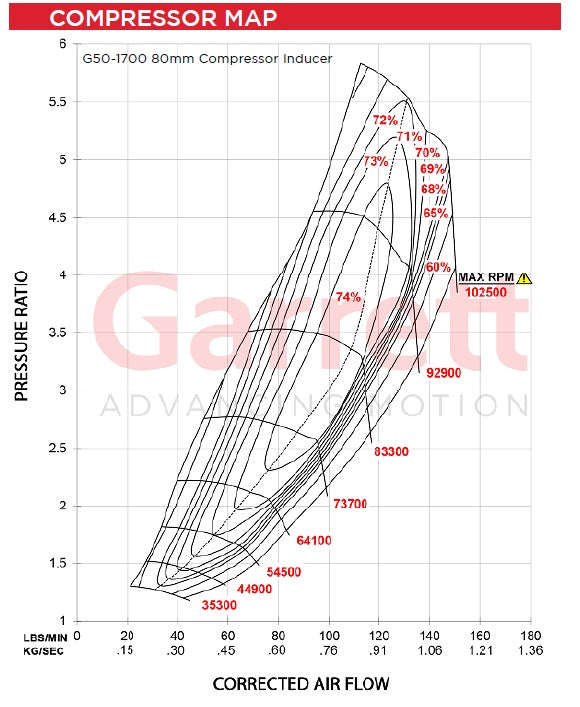

80mm | 109mm comp exducer | 88mm comp inducer | 120mm comp exducer with their own horsepower ratings indicated in the model name.

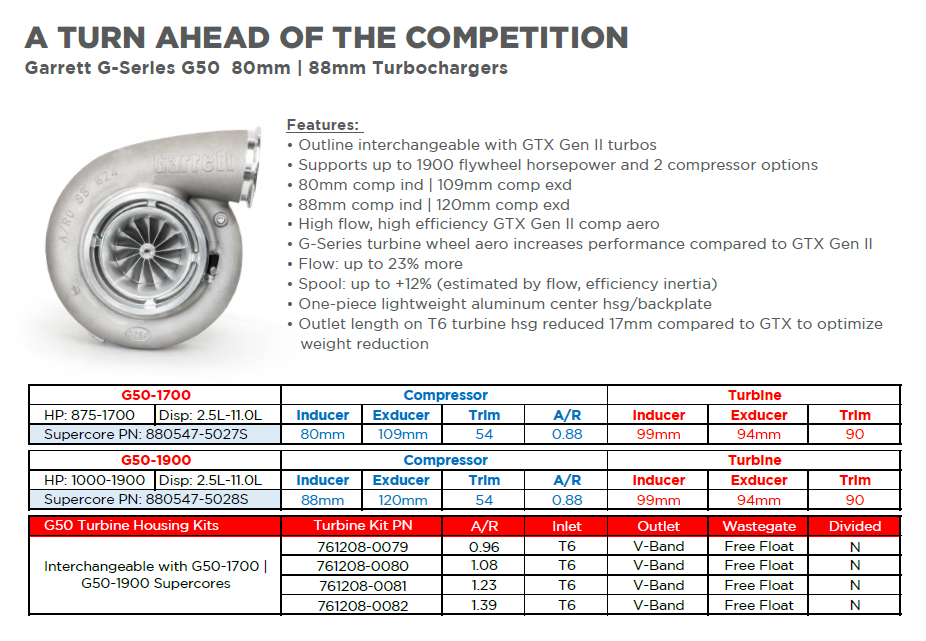

Features:

Supports nearly 1900 horsepower with amazing boost response depending on your inducer wheel choice
80mm | 109mm comp exducer | 88mm comp inducer | 120mm comp exducer
Spool: up to +12% (estimated by flow, efficiency, and inertia)
23% more turbine flow (compared to GTX) see graph below
One-piece aluminum center housing
Outline interchangeable with GTX Gen II turbos
