Unleash a beast under your hood with the Garrett PowerMax Twin Turbo Upgrade! These direct-fit GT1752S turbos are engineered with OEM precision to give your 2022+ Ford Bronco or Ranger Raptor 3.0L a thrilling boost, supporting up to 640 horsepower. Each kit includes complete left and right turbo assemblies with calibrated electric actuators, ensuring seamless integration and exhilarating performance. Crafted with a durable stainless steel turbine housing, these turbos are ready to conquer the road and beyond, all while being CARB emissions certified.

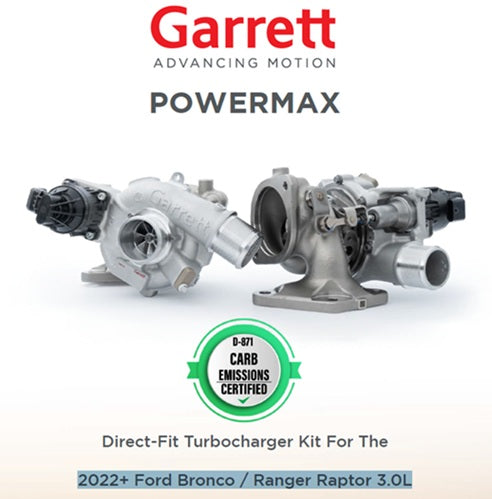

Garrett PowerMax Twin Turbos GT1752S Upgrade for 2022+ Ford Bronco Ranger Raptor 3.0L
$3,399.95
Shipping calculated at checkout.
Pickup currently not available
| Upgrade Type | Direct-Fit |
| Vehicle Compatibility | 2022+ Ford Bronco / Ranger Raptor 3.0L |
| Kit Contents | Complete LH & RH turbo assemblies with calibrated electric actuators |
| OEM Status | Garrett is the OEM turbocharger for this application |
| Emissions Certification | CARB Emissions Certified D-871-4 |
| Max Horsepower Support | Up to 640 BHP |
| Compressor Flow Increase | +18% compared to OEM turbo |
| Turbine Flow Increase | +6% compared to OEM turbo |
| Compressor Inducer Diameter | 1.61 inches (41mm) |
| OEM Compressor Inducer Diameter | 1.50 inches (38mm) |
| Turbine Housing Material | Stainless Steel |
| Turbine Housing Max Temperature | Up to 1742°F (950°C) |
| Shaft Speed Monitoring | Fully machined sensor port for optional monitoring modules |
